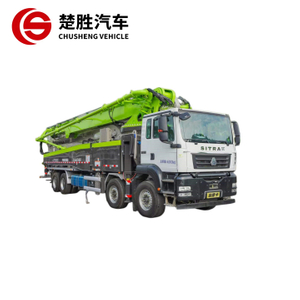

SINOTRUK HOWO
Concrete Pump Trucks are used in a variety of construction projects, including:
High-Rise Buildings: Pumping concrete to upper floors without the need for scaffolding.
Infrastructure Projects: Used for bridges, roads, and tunnels where concrete needs to be placed at a distance or height.
Residential Construction: Ideal for foundations and multi-story homes.
Industrial Construction: Useful for factories and large-scale commercial buildings.
Truck-Mounted Pumps: The most common type, mounted on a truck chassis for easy transportation.
Trailer-Mounted Pumps: Designed to be towed and can be used with a variety of vehicles.
Line Pumps: Used for pumping concrete through a pipeline without the need for a boom.
Articulated Boom Pumps: Highly maneuverable with an articulated joint in the boom for better reach.
Truck-Mounted Pumps: Suitable for general construction work and easy to move between sites.
Trailer-Mounted Pumps: Ideal for rental companies and temporary setups.
Line Pumps: Best for projects requiring long-distance pumping without the need for precise placement.
Articulated Boom Pumps: Perfect for complex construction sites with obstacles or limited space.
Concrete Pump Trucks are used in a variety of construction projects, including:
High-Rise Buildings: Pumping concrete to upper floors without the need for scaffolding.
Infrastructure Projects: Used for bridges, roads, and tunnels where concrete needs to be placed at a distance or height.
Residential Construction: Ideal for foundations and multi-story homes.
Industrial Construction: Useful for factories and large-scale commercial buildings.
Truck-Mounted Pumps: The most common type, mounted on a truck chassis for easy transportation.
Trailer-Mounted Pumps: Designed to be towed and can be used with a variety of vehicles.
Line Pumps: Used for pumping concrete through a pipeline without the need for a boom.
Articulated Boom Pumps: Highly maneuverable with an articulated joint in the boom for better reach.
Truck-Mounted Pumps: Suitable for general construction work and easy to move between sites.
Trailer-Mounted Pumps: Ideal for rental companies and temporary setups.
Line Pumps: Best for projects requiring long-distance pumping without the need for precise placement.
Articulated Boom Pumps: Perfect for complex construction sites with obstacles or limited space.
Technical Parameters of Concrete Pump Truck:
Truck Chassis parameters | ||
Cabin | Driving type 4x2. Right Hand Drive | |
SITRAK, 2500cab, with two seats, with A/C | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10190*2500*3700(mm) |
Wheel base (mm) | 5200 | |
Wheel track (front/rear) (mm) | 2035/1860 | |
Approach/Departure angle(°) | 19/29 | |
Weight in KGS | Approximate Tare Weight | 20000 |
Front axles loading capacity | 7000 | |
Rear axles loading capacity | 13000 | |
Max. driving speed(km/h) | 100 | |
Engine | Brand | HOWO |
Model | MC07.31-30 | |
Type | 6-cylinder inline, 4-stroke ,turbo-charging and inter-cooling | |
Horse Power(HP) | 280 | |
Emission standard | Euro 3(Remove the DPF and downgrade to Euro 3) | |
Tire Model | 295/80R22.5,11.00R20, 6 pieces with one spare ( 7 pieces total ) | |
Steering | Right Hand Drive | |
Fuel Type | Diesel | |
Upper Body Technical parameters | ||
Pumping System | ||
Theoretical output | 100 m³/h | |
Concrete pumping pressure | 8 Mpa | |
Theoretical pumping times | 25 Time/min | |
Delivery cylinder diameter ×stroke | φ230*1600 mm | |
Max. diameter of pumping concrete aggregate | 40 mm | |
Filling height | 1550 mm | |
Concrete slump range | 8~23 cm | |
Placing Boom | ||
Reach Height | 29.6 m | |
Reach Depth | 18 m | |
Slewing Radius | 25.7 m | |
Slewing Angle | ±270° | |
Unfolding angle of the 1st section | 90° | |
Unfolding angle of the 2nd section | 180° | |
Unfolding angle of the 3rd section | 250° | |
Unfolding angle of the 4th section | 235° | |
Stabilizer Span | ||
Longitudinal span of stabilizer | 6100 mm | |
Transverse span of front stabilizer | 5555 mm | |
Transverse span of rear stabilizer | 4810 mm | |
Others | ||
Transfer tube | Rock valve | |
Lubrication method | Automatic lubrication | |
Control method | Manual/remote control | |
Volume of water box | 400L |
Technical Parameters of Concrete Pump Truck:
Truck Chassis parameters | ||
Cabin | Driving type 4x2. Right Hand Drive | |
SITRAK, 2500cab, with two seats, with A/C | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10190*2500*3700(mm) |
Wheel base (mm) | 5200 | |
Wheel track (front/rear) (mm) | 2035/1860 | |
Approach/Departure angle(°) | 19/29 | |
Weight in KGS | Approximate Tare Weight | 20000 |
Front axles loading capacity | 7000 | |
Rear axles loading capacity | 13000 | |
Max. driving speed(km/h) | 100 | |
Engine | Brand | HOWO |
Model | MC07.31-30 | |
Type | 6-cylinder inline, 4-stroke ,turbo-charging and inter-cooling | |
Horse Power(HP) | 280 | |
Emission standard | Euro 3(Remove the DPF and downgrade to Euro 3) | |
Tire Model | 295/80R22.5,11.00R20, 6 pieces with one spare ( 7 pieces total ) | |
Steering | Right Hand Drive | |
Fuel Type | Diesel | |
Upper Body Technical parameters | ||
Pumping System | ||
Theoretical output | 100 m³/h | |
Concrete pumping pressure | 8 Mpa | |
Theoretical pumping times | 25 Time/min | |
Delivery cylinder diameter ×stroke | φ230*1600 mm | |
Max. diameter of pumping concrete aggregate | 40 mm | |
Filling height | 1550 mm | |
Concrete slump range | 8~23 cm | |
Placing Boom | ||
Reach Height | 29.6 m | |
Reach Depth | 18 m | |
Slewing Radius | 25.7 m | |
Slewing Angle | ±270° | |
Unfolding angle of the 1st section | 90° | |
Unfolding angle of the 2nd section | 180° | |
Unfolding angle of the 3rd section | 250° | |
Unfolding angle of the 4th section | 235° | |
Stabilizer Span | ||
Longitudinal span of stabilizer | 6100 mm | |
Transverse span of front stabilizer | 5555 mm | |
Transverse span of rear stabilizer | 4810 mm | |
Others | ||
Transfer tube | Rock valve | |
Lubrication method | Automatic lubrication | |
Control method | Manual/remote control | |
Volume of water box | 400L |
Our services:
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Our services:
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
1,Hubei Chusheng Vehicle Co.,Ltd is a renowned and the largest manufacturer in the field of special-purpose vehicles in China for over 20 years. We have more than 3,000 workers and 400 technical personnel, with a factory size exceeding 690,000 square meters.
2,Our products have been exported to 60 countries, including regions and countries in the Middle East, Asia, Africa, and Eastern Europe. Our products have passed the ISO 9001 quality system certification and CCC certification.
3,Our company has over 1,000 units of advanced production equipment, forming production lines for dump trucks, tanker trucks, tow trucks, garbage trucks, and other special trucks and semi-trailers, with an annual production capacity of 50,000 units.
1,Hubei Chusheng Vehicle Co.,Ltd is a renowned and the largest manufacturer in the field of special-purpose vehicles in China for over 20 years. We have more than 3,000 workers and 400 technical personnel, with a factory size exceeding 690,000 square meters.
2,Our products have been exported to 60 countries, including regions and countries in the Middle East, Asia, Africa, and Eastern Europe. Our products have passed the ISO 9001 quality system certification and CCC certification.
3,Our company has over 1,000 units of advanced production equipment, forming production lines for dump trucks, tanker trucks, tow trucks, garbage trucks, and other special trucks and semi-trailers, with an annual production capacity of 50,000 units.
